6173R

6173R

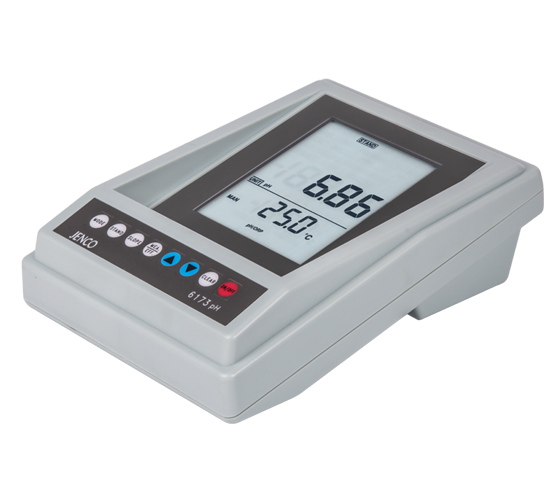

Water resistant, easy to use, RS-232, benchtop pH/mV/temperature meter. Inputs BNC and 8-pin DIN.

Description

pH/mV/Temp benchtop meter with an extra large LCD display for ease of use. Features a splash proof and rugged case ideal for schools and universities. Features EEF, Electrode Efficiency Function, multiple buffers 4.00, 4.01, 6.86, 7.00, 9.18 & 10.0 and automatic slope, buffer and electrode offset recognition. Has power down memory backup and works on 6 AA batteries or 115/230 V AC adapters. CE Approved & ISO 9001 Certified.

  • Larger LCD display
  • Buffers recognition
  • Electrode offset recognition
  • Electrode slope recognition
  • Built in buffer temp. coefficient
  • Auto lock
  • Touch keys with audio feedback
  • Power down memory
  • Battery/ac adaptor
  • Low power consumption
  • Battery low indicator
  • Battery low indicator
  • Percentage of power supply display
  • RS-232 output

Specifications

pH Range
-2.00 to 20.00 pH
pH Resolution
0.01 pH
pH Accuracy
±0.01 pH ±1 LSD
ORP Range
-2000 to 2000 mV
ORP Resolution
1.0 mV
ORP Accuracy
±0.05% mV of rdg(range) ±1 LSD
Temperature Range
-10.0 to 120.0 °C
Temperature Resolution
0.1 °C
Temperature Accuracy
±0.5 °C ± 1 LSD
pH Temperature Compensation
Auto/manual -10.0 to 120.0 °C
pH Buffer Recognition
(4.01,7,10.01) or (4.00,6.86,9.18)
pH Buffer Temperature Range
0 to 60 °C
pH Electrode Offset Recognition
±90 mV at pH 7.00 or 6.86
pH Electrode Slope Recognition
±30% at pH 4.01,9.18 or 10.01
Input Impedance
>1013 ohms
Power Supply
Batteries or AC adapter
Calibration Backup
Eprom
Audio Feedback
All touch keys
End Point Sensing & Hold
Yes
LCD Size (ph/mV/Temperature)
16 x 21 mm high LCD
Ambient Temperature Range
0 to 50 °C
Relative Humidity
Up to 95%
ATC Probe
Thermistor,10k ohm
RS-232 Communication
Bate rate 9600
Dimensions (w x d x h)
230 x 165 x 80 mm
