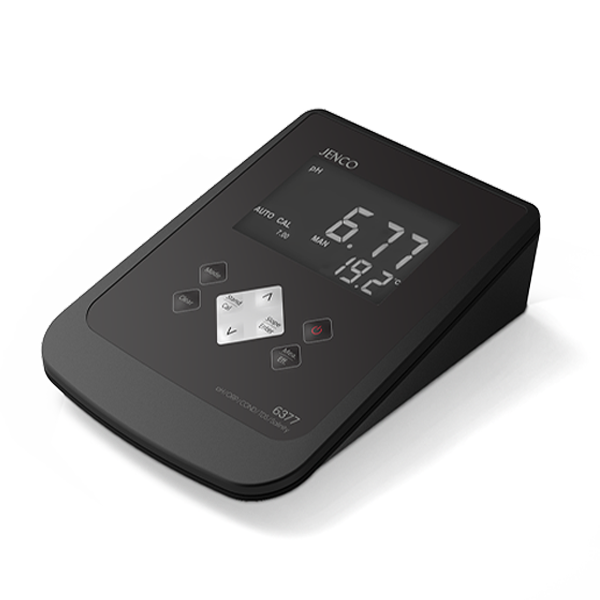

Basis Benchtop 6377 pH / ORP / Conductivity / Salinity / TDS / Temperature Meter

The Basis Series pH/mV/Conductivity/Salinity/TDS/temperature benchtop meter is the Multi-parameter meter from a line that is renowned for its reading quality, now with a refined user experience and improved usability.

  • Renowned accuracy and repeatability
  • Upgraded user experience and usability
  • Improved electrode serviceability and low cost of ownership

Add this item to your custom quote page by clicking the above "add to quote" button.

Well-designed, Inside and Out


The Basis Series pH/EC Multi-parameter meter forms the foundation of Jenco’s benchtop meter offerings and comes from a long line of distinguished benchtop meters, where low cost of ownership, reading quality and build quality take precedent.

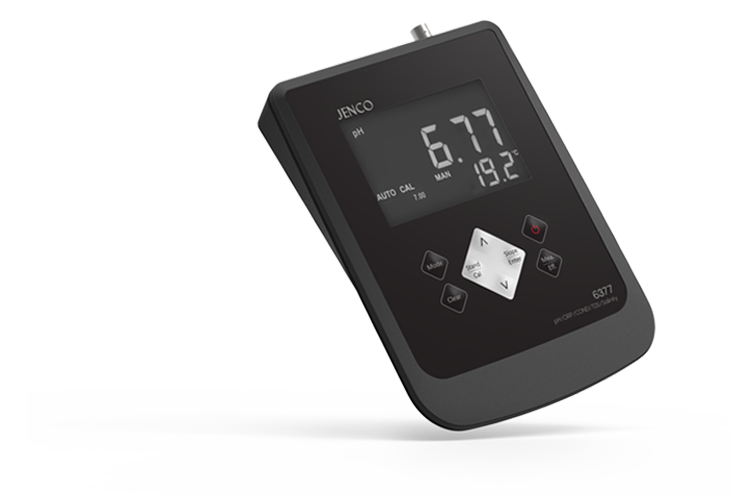

6377-4-730x497

Renowned Accuracy and Repeatability

The reason Jenco is consistently contracted to build products for well-respected brands and the reason we can consistently win the trust of end-users is due to our reputation for being focused on reading quality. Do the right things in the right way, no cutting corners.

  • Repeatable readings with 0.01 pH and 0.1 mV resolution
  • Repeatable, accurate results achieved with up to 5 points NIST or US buffer calibration for pH, 1 point ORP and 1 point Conductivity offset calibration.

  • Each and every unit is hand calibrated and QC’ed by at least 2 teams
6377-3-730x547

Upgraded User Experience and Usability

Streamlined and modern design is paired with a large, high contrast backlit LCD, buttons with tactile and audio feedback, and a detached electrode holder arm.

  • Streamlined, modern and smaller design creates clutter-free workspace
  • Large, high contrast LCD
  • Well-situated keys with tactile feedback
  • AC adaptor or battery powered
  • Splash-resistant case made with durable, reinforced plastic for added protection
6377-back-730x218

Improved Electrode Serviceability and Low Cost of Ownership

The Basis Series pH/mV/Conductivity/Salinity/TDS/temperature benchtop meter uses a standard BNC connector for pH and ORP so it works with a vast majority of electrodes available on the market. The decision to make the electrode arm a detached, optional accessory further allows the Basis Series to be setup in the way that works best for you.

  • BNC connector for pH or ORP probes
  • 8-Pin DIN for temperature and Conductivity probe

Specifications

pH Range
-2.00 to 16.00 pH
pH Resolution
0.01 pH
pH Accuracy
± 0.01 pH
ORP Range (Absolute)
- 1999.9 to 1999.9 mV
ORP Resolution
0.1 mV
ORP Accuracy
±0.05% F.S.
Conductivity/TDS Range K=0.1
0.00 to 200.0 uS/cm / 0.00 to 200.0 mg/L
Conductivity/TDS Resolution K=0.1
0.01 uS/cm, 0.1 uS/cm / 0.01 mg/L, 0.1 mg/L
Conductivity/TDS Accuracy K=0.1
±0.5% F.S.
Conductivity/TDS Range K=0.475
0.0 uS/cm to 200.0 mS/cm / 0.0 mg/L to 200.0 g/L
Conductivity/TDS Resolution K=0.475
0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm / 0.1 mg/L, 1 mg/L, 0.01 g/L, 0.1 g/L
Conductivity/TDS Accuracy K=0.475
±0.5% F.S.
Salinity Range
0.0 to 80.0 ppt
Salinity Resolution
0.1 ppt
Salinity Accuracy
± 0.5% F.S.
Temperature Range
0.0 to 100.0 °C
Temperature Resolution
0.1 °C
Temperature Accuracy
±0.2 °C
pH / EC Temperature Compensation
Auto/manual 0.0 to 100.0 °C
pH Buffer Recognition
USA 、NIST
pH Buffer Temperature Range
0 to 60 °C
pH Electrode Offset Recognition
±1.0 pH
pH Electrode Slope Recognition
±30%
pH calibration
Up to 5 points
ORP calibration
1 point Offset ± 150 mV
Conductivity calibration
1 point
Input Impedance
>1012 ohms
Reference Temperature
15.0 to 25.0 °C, default at 25.0 °C
Temperature Coefficient
0.00 to 4.00%, default at 1.91%
TDS Factor
0.30 to 1.00, default at 0.65
Basic Cell Constant
K=0.1, k=0.475, user selectable
Calibration Backup
Yes
Audio Feedback
All touch keys
End Point Sensing & Hold
pH & ORP
Auto Ranging
Conductivity
ATC Probe
Thermistor,10 kohm
Ambient Temperature Range
0 to 50 °C
Relative Humidity
Up to 90%
Power Supply
100 to 240 V AC adapter or AAA x 6 Batteries
Weight
430 grams
Dimensions (w x d x h)
150 x 210 x 45 mm
